Vehicle Model Fit For

2000-2004 FORD FOCUS

Position/Plug Type:
High-Low beam: H4

Fog Light : 880/881

F16PLUS Features:
-Upgraded version of F16 series, CSP3570 LED chips, 6500k white, high efficient luminance output.

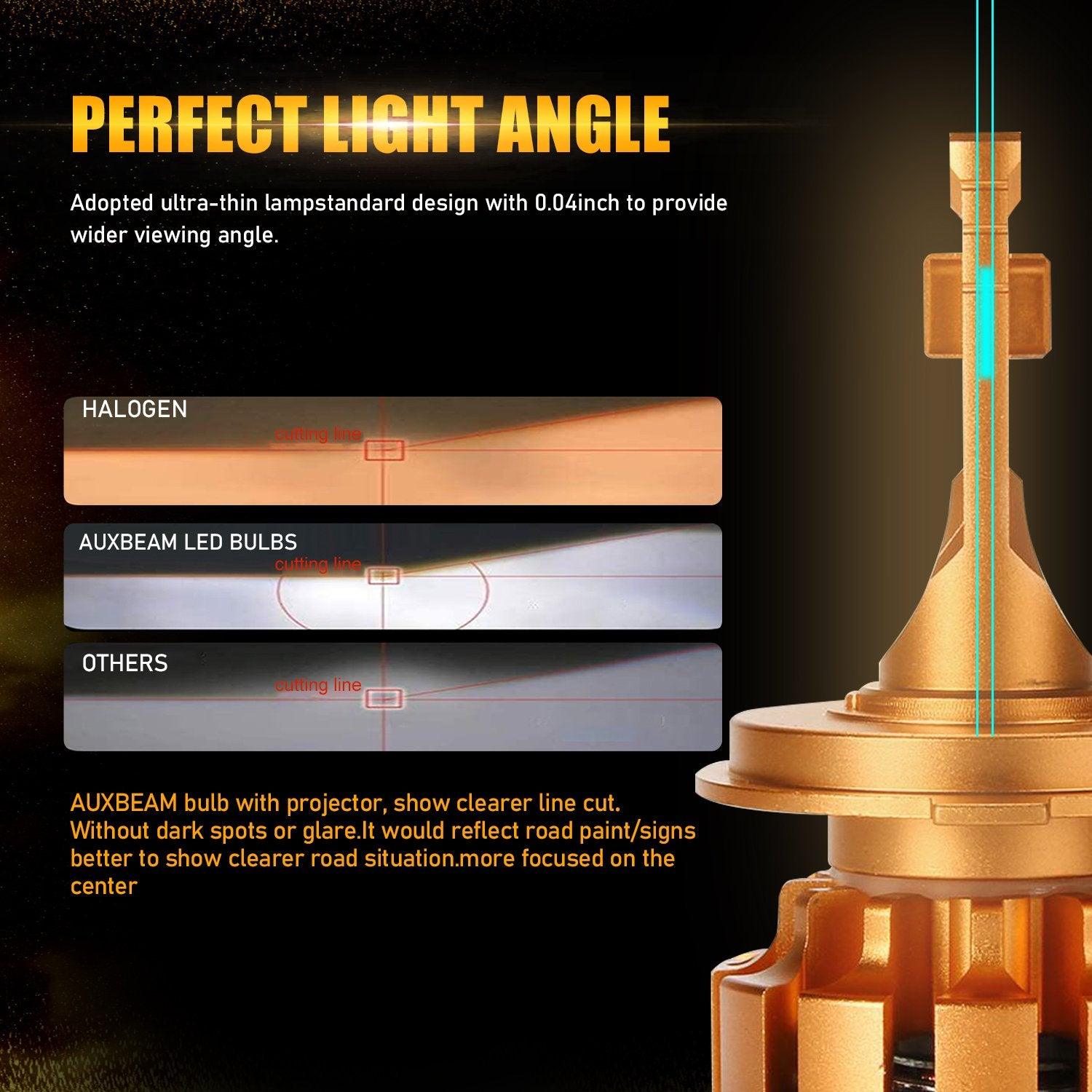

-0.04inch slimmest side designed, ultra-thin lampstandard design to provide wider viewing angle.
-Compact all-in-one integrated design, external drive, built-in canbus, self-contained decoding to avoid error codes.
-Aviation aluminum with high thermal conductivity, built-in ball-bearing fan with 12000R/Min, maximum heat dissipation.
-Built-in IC, EMC tech avoid current frequency noise caused by electromagnetic interference.
-All round water proof safe lighting IP68.

SPECIFICATIONS:
Plug Type:H4 Hi-Lo Beam
LED Type: CSP 3570 Automotive Grade
Efficacy(2/pcs): 70W
LED Quantity:  24pcs (twin light)
Raw Lumen(2/pcs): 14000 LM
Current Draw: 2.5 A
Operating Voltage: 9-12V
Color:Natural White
Color Temperature : 6000K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Fan Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: 45 celsius degree~150 celsius degree
CAN BusYes

Fits 98% of vehicles: In-built fully upgraded CANbus.
Some sensitive cars may flicker after installed(not quality issue),
specific canbus decoders are needed.

Note:
-Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item.

F2 Series led light bulbs with double-sideds led chips,
360-degree clear beam no blind zone. Luminous Flux: 10000lm/set(5000lm/bulb), cool white light reflect road paint/signs better to show clearer road situation.

BETTER LIGHT OUTPUT
Engineering beam pattern design throw light on road evenly at appropriate angle without foggy light. Soft white light in solid beam pattern, will not dazzle on-coming traffic.

SPECIFICATIONS:
Plug Type: 880/881(Fog Light)
LED Type: CSP 1860
Efficacy(2/pcs): 52W
LED Quantity: 12pcs (single light)
Raw Lumen(2/pcs): 10000 LM
Current Draw: 2.1A
Operating Voltage: 9-12V
Colour: Cool White
Color Temperature : 6500K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Fan Dissipation
LED Lifetime: 30000 hours
Waterproof: IP68
Ambient Operating Temperature: -40°C-150°C

CAN BusNo
Note: fits 98% of vehicles;
Some sensitive cars may flicker after installed(not quality issue),
additional canbus decoders are needed.
