Vehicle Model Fit For

2000-2003 Ford F150
2000-2004 Ford F250 Super Duty
2000-2004 Ford F350 Super Duty

Position/Plug Type:
High-Low beam: 9007
Fog light: 9145/9005
Back up 3156
Brake: 3157
Turn Signal: 3157
Tail Light: 3157

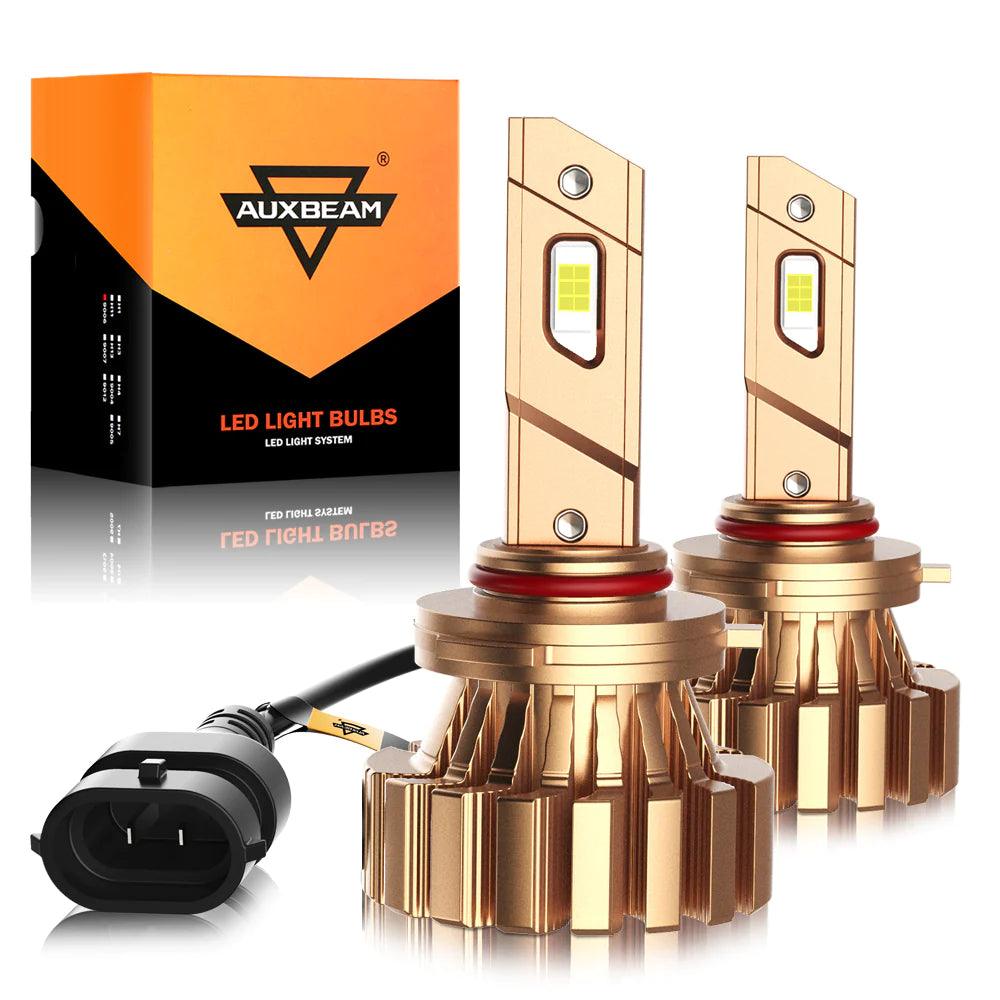

F16-PLUS INTRODUCTION:
-Upgraded version of F16 series, CSP3570 LED chips, 6500k white, high efficient luminance output.
-0.04inch slimmest side designed, ultra-thin lampstandard design to provide wider viewing angle.
-Compact all-in-one integrated design, external drive, built-in canbus, self-contained decoding to avoid error codes.
-Aviation aluminum with high thermal conductivity, built-in ball-bearing fan with 12000R/Min, maximum heat dissipation.
-Built-in IC, EMC tech avoid current frequency noise caused by electromagnetic interference.
-All round water proof safe lighting IP68.

F16-PLUS 9007 HI-LO BEAM SPECIFICATIONS:
LED Type: CSP 3570 Automotive Grade
Efficacy(2/pcs): 70W
LED Quantity(2/pcs): 24pcs
Raw Lumen(2/pcs): 14000 LM
Current Draw: 2.5 A
Operating Voltage: 9-12V
Color:Natural White
Color Temperature : 6000K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Fan Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: 45 celsius degree~150 celsius degree
CAN BusYes
Fits 98% of vehicles: In-built fully upgraded CANbus.
Some sensitive cars may flicker after installed(not quality issue),
specific canbus decoders are needed.

Note:
-Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item.

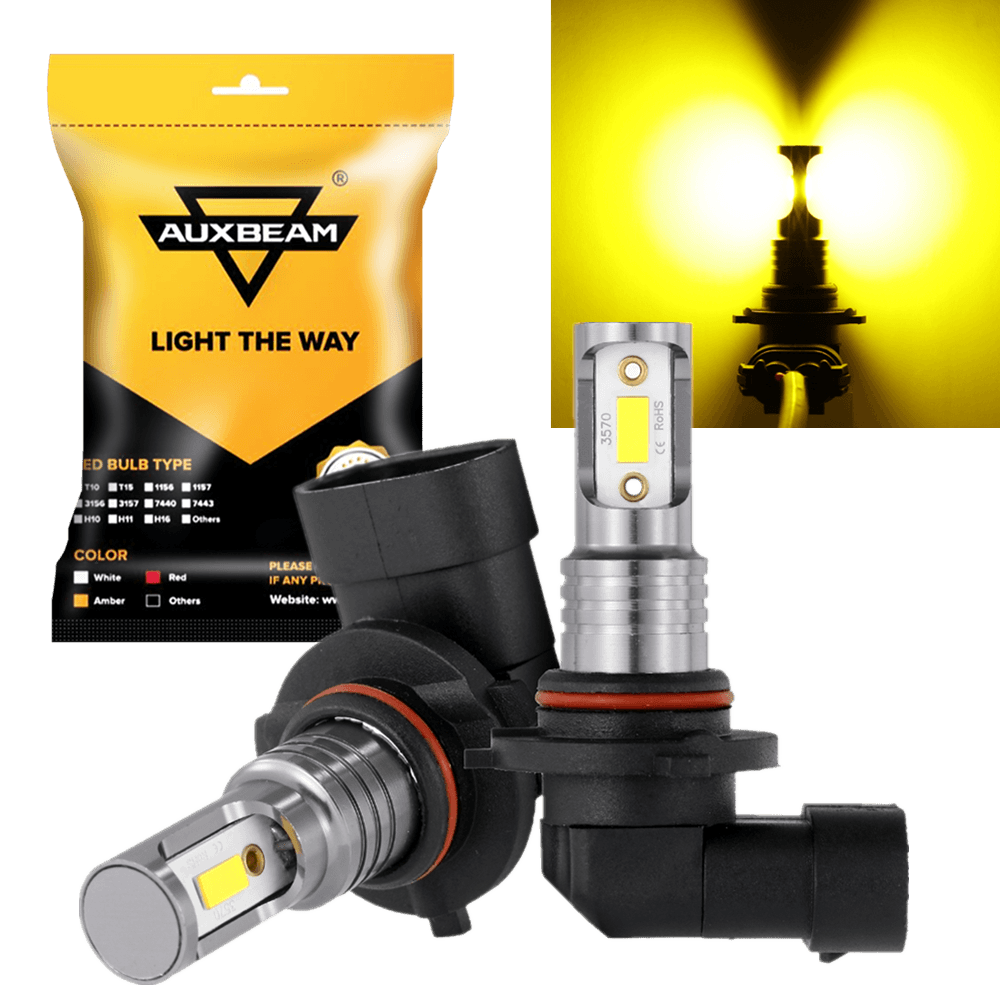

Q5 Fog Light Bulb Introduction
-Two-sided lamp bead design, high power 3570 chips.
-10000LM superior penetration fit for rainy & foggy days.
-Built-in CAN-Bus no flash no flicker, no error products.
-An aluminum heat sink design and a built-in automotive circuit to prevent electronic interference are needed.
-Plug and play; NO modification is required.

Q5 9140/9005 Fog Light Bulb SPECIFICATIONS:
LED Type: CSP 3570
Efficacy(2/pcs): 50W
LED Quantity(per bulb): 12pcs
Raw Lumen(2/pcs): 10000LM
Current Draw: 2.08A
Operating Voltage: 12V
Color: Cool White
Color Temperature: 6500K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Aluminum Dissipation
LED Lifetime: 60000 hours
Waterproof: IP68
Celsius degree~150 celsius degree
