Vehicle Model Fit For

2006-2017 Ford Fusion

Position/Plug Type:
High Beam: H7

Low Beam:  H11
Fog Light:    H11/H8/H9

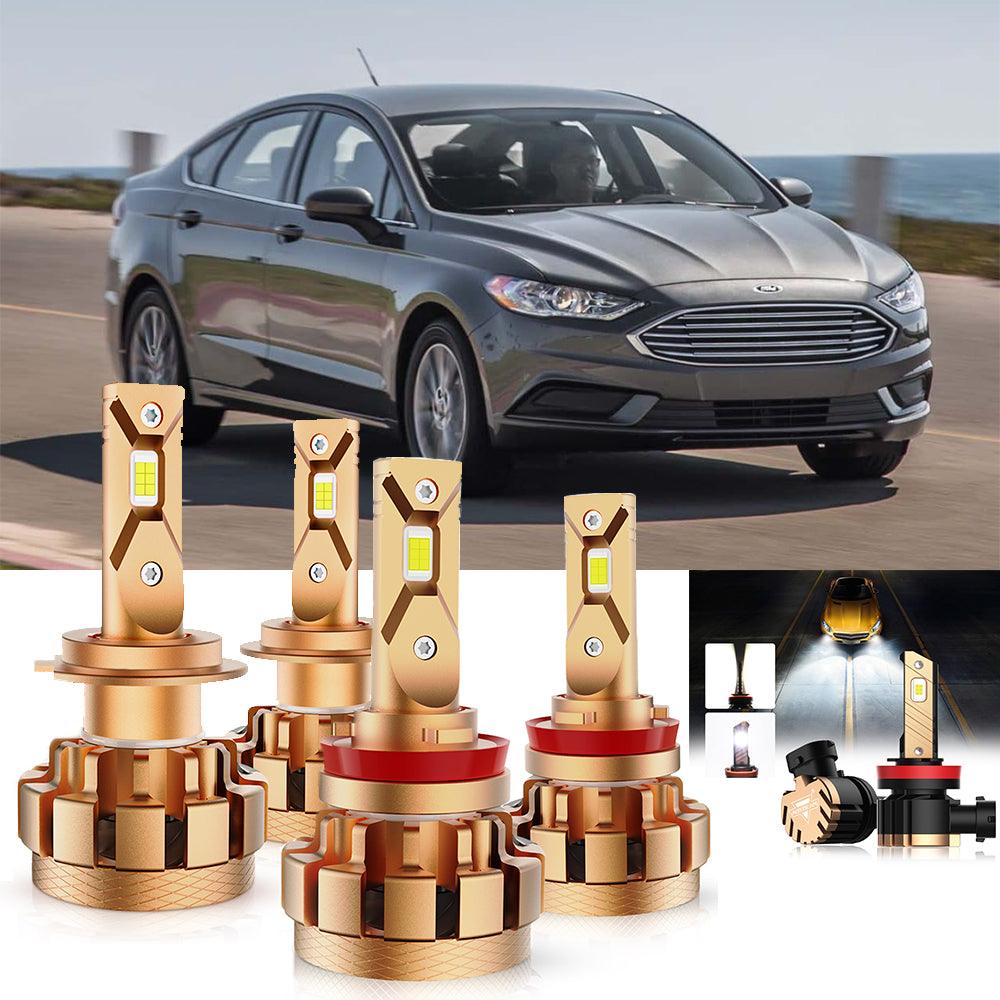

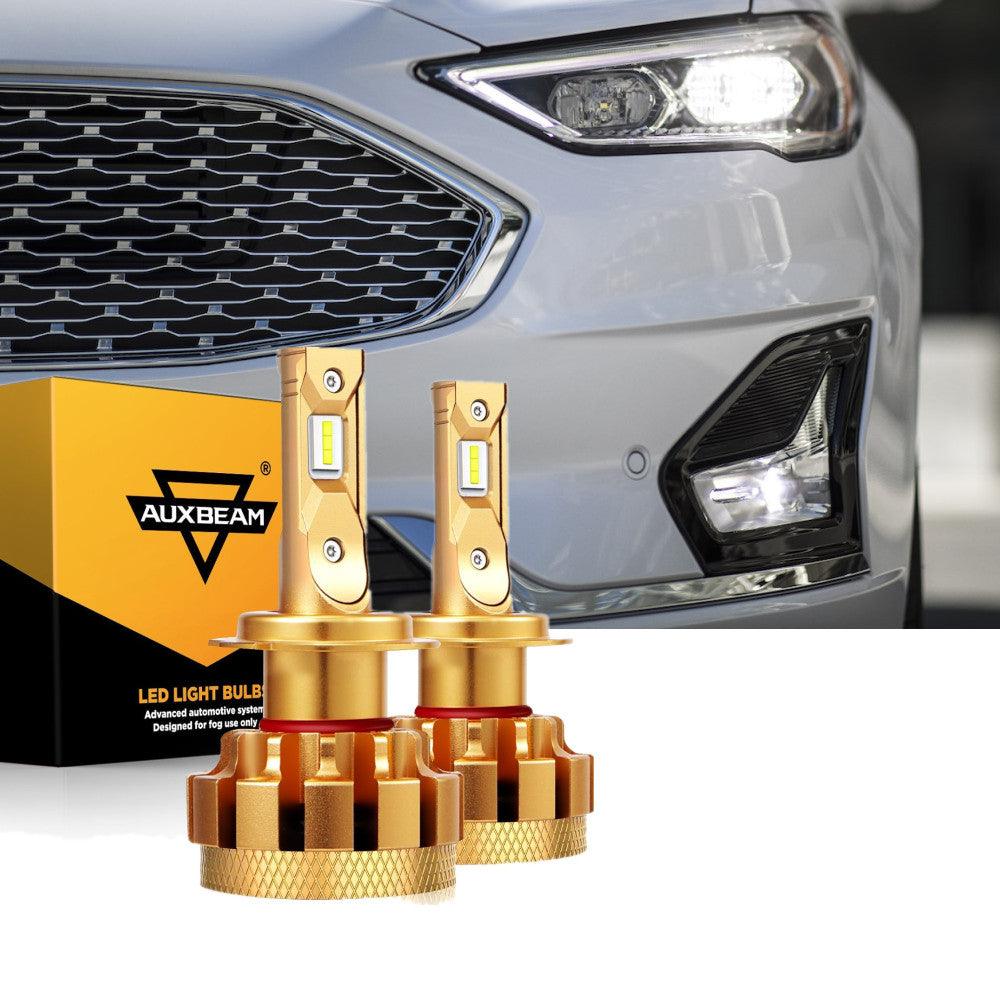

F16-PLUS INTRODUCTION:
-Upgraded version of F16 series, CSP3570 LED chips, 6500k white, high efficient luminance output.

-0.04inch slimmest side designed, ultra-thin lampstandard design to provide wider viewing angle.
-Compact all-in-one integrated design, external drive, built-in canbus, self-contained decoding to avoid error codes.
-Aviation aluminum with high thermal conductivity, built-in ball-bearing fan with 12000R/Min, maximum heat dissipation.
-Built-in IC, EMC tech avoid current frequency noise caused by electromagnetic interference.
-All round water proof safe lighting IP68.

F16-PLUS HI-BEAM/LO-BEAM SPECIFICATIONS:
LED Type: CSP 3570 Automotive Grade
Efficacy(2/pcs): 70W
LED Quantity: 12pcs (single light)
Raw Lumen(2/pcs): 14000 LM
Current Draw: 2.5 A
Operating Voltage: 9-12V
Color:Natural White
Color Temperature : 6000K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Fan Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: 45 celsius degree~150 celsius degree
CAN BusYes

Fits 98% of vehicles: In-built fully upgraded CANbus.
Some sensitive cars may flicker after installed(not quality issue),
specific canbus decoders are needed.

Note:
-Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item.

--Z3 FOG LIGHT BULBS INTRODUCTION:

Z3 Series specially designed for fog lights.
AUXBEAM 3570CSP highbrightness chipset.
8000LM supeior penetration fit for rainy&foggy day.
Two color options:
6500K Cool white;
3000K Golden yellow;
Quality made effetive cooling:
6063 Aluminum all in one shell;
Customs heat sink design;
5Mins plug and play
Wireless mini size easy installion.
ERROR FREE:
EMC built-in driver anti electromagnetic interference.

SPECIFICATIONS:
Plug Type: H11/H9/H8
Color options :
-6500K Cool White
-3000K Golden yellow
Installation position: Fog Light/DRL
LED Type: CSP 3570
Efficacy(2/pcs): 44W
LED Quantity(per bulb): 12pcs
Raw Lumen(2/pcs): 8000 LM
Current Draw: 1.8 A
Operating Voltage: 9-12V
Colour: 6500K Cool White
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Aluminum Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature:
-45 celsius degree~150 celsius degree
CAN BusNo
Note: fits 98% of vehicles;
Some sensitive cars may flicker after installed(not quality issue),

additional canbus decoders are needed.
